Single Color LED Strip
3528 Color Adjustable W/WW LED Strip

Application:

1. Restaurants, lounges, casinos,
2. Homes and retail stores,
3. Decorative and accent lighting,
4. Edge lighting glass or acrylic plates,
5. Entertainment centers and home theater,
6. Under cabinet lighting.

Email: inquiry@ipixelleds.com

Share to

3528 Color Adjuatable W/WW LED Strip

Product Parameter:

P/N Emitting Color
MCD per/ LED
  CCT
Size:/mm LED/Qty/M LED Type Voltage                Power (W/M) IP Rate
S1203528 warm white
ww:480
ww:2800-3200
5000*10

SMD3528/120PCS

(60pcs w,60pcsww)

smd3528 DC24V ww:3.8 IP20
white w:420
w:4500-6500
DC24V w:3.6
IP20


Features :

1.This flexible led tape is 10mm wide within 60 pcs white & 60 pcs warm white leds in a meter, color adjustable,

2.Color white PCB, with grown color 3M tape attached,
3.DC24V working voltage, and it's cutable every 10cm ,there is a a cuting mark with,
4.Soldering Pad , 12pcs LED in a set,
5.5 meter in a reel which packed by a silver bag,

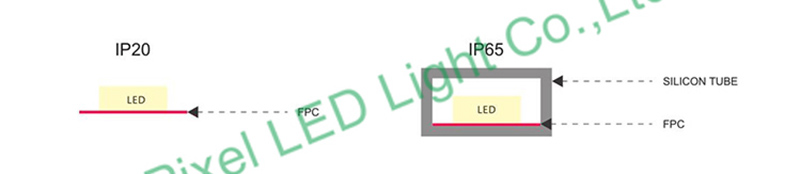

6.The waterproof version coated by a silicon tube, wide :14mm,
7.Both end of strip attached 3 pcs bare wire for powering, the cable in the middle is DC24V.




Connection:
