LED Matrix
8*8 WS2812B LED Matrix

Application:

1. DIY electronic production.
2. Advertising.

3. Display.

4. Subtitles

Email: inquiry@ipixelleds.com


Share to

8*8 WS2812B LED Matrix

Product Parameter:

P/N LED Qty/pcs Size(mm)
Pixel VCC Power IC Lumen per pcs IP
S0808WS2812 5050 RGB 64leds L80*W80
64 DC5V 12.8W/pcs WS2811
R:25600 G:44800 B:12160 IP20



Features:
1. WS2812B flexible LED matrix-8x8 pixels
2. It's very easy to add any letters while each individually control .
3. That’s 64 individually addressable LEDs on a 80mm x 80mm flexible panel.
4. You can set any animations
5. These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 4A in most uses (3.8A required wen you set all LEDs in white color).
6. There are two 3-pin JST SM connectors and two pcs bare power cables
7. Red :DC5V+, Yellow:COM-, Green:DAT, and Yellow GND.
8. When the full panel set as white color , the whole PCB getting very hot even if
we used 1 ounce Copper.
9. You must supply power to each panel when  you links many pcs

10. Note: please pay attention to the matrix when you bending the flexible panel.

1

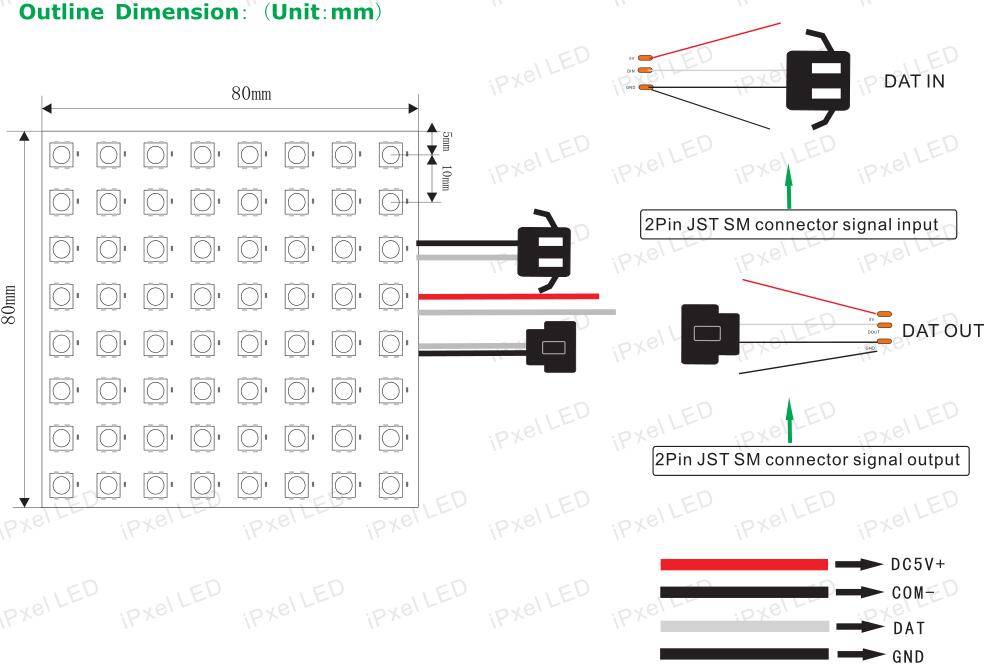

Connection:



Last: 4*4 APA102C LED Matrix
Next: 16*16 WS2812B LED Matrix
