High density SMD3535 RGB LED strip 240LEDs/m

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    S012240DC3PZ
    Voltage
    DC24V
    SMD Type
    SMD 3535 RGB
    LED Quantity     240 LEDs/m
    View Color
    RGB
    Dimension
    3000*12mm
    Lumens/m
    R:205LM G:704LM B:107LM
    Material     FPC
    Power
    28.8 W/M
    Minimum Cutting Length
     25mm
    IP Rate     IP20/IP64/IP65/IP67

Description

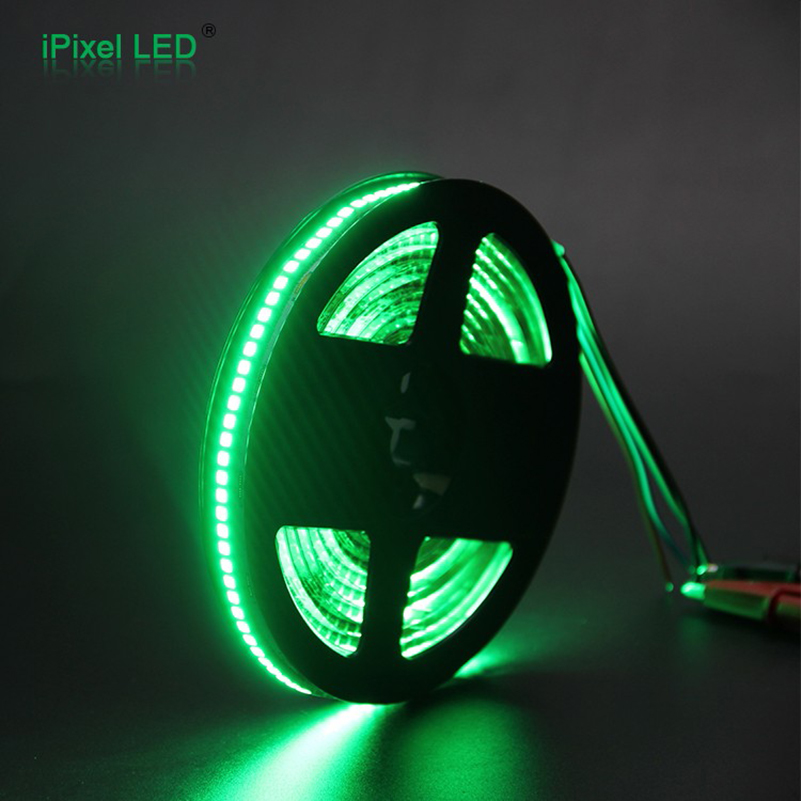

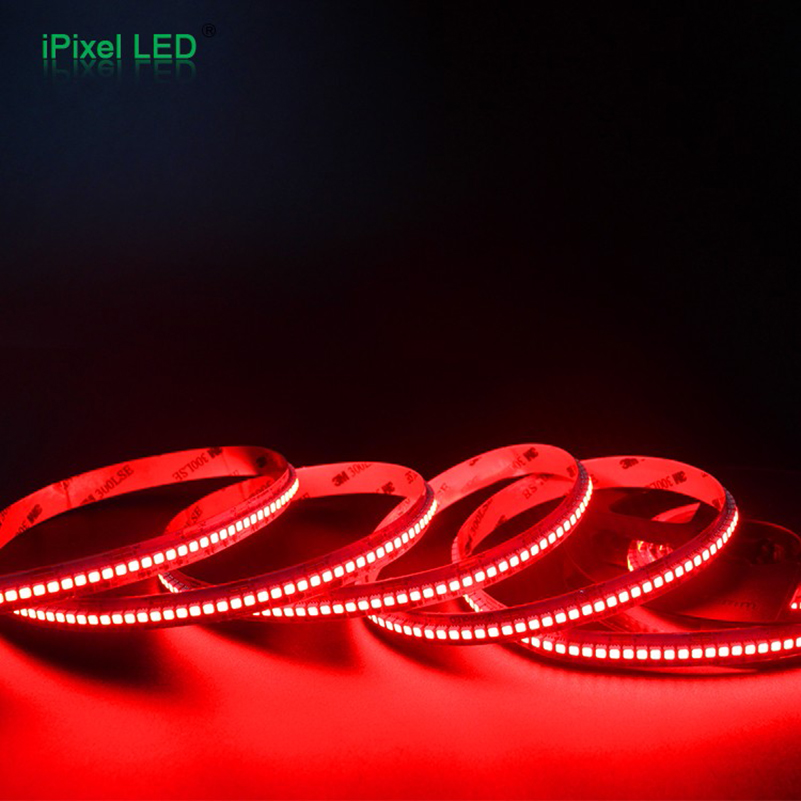

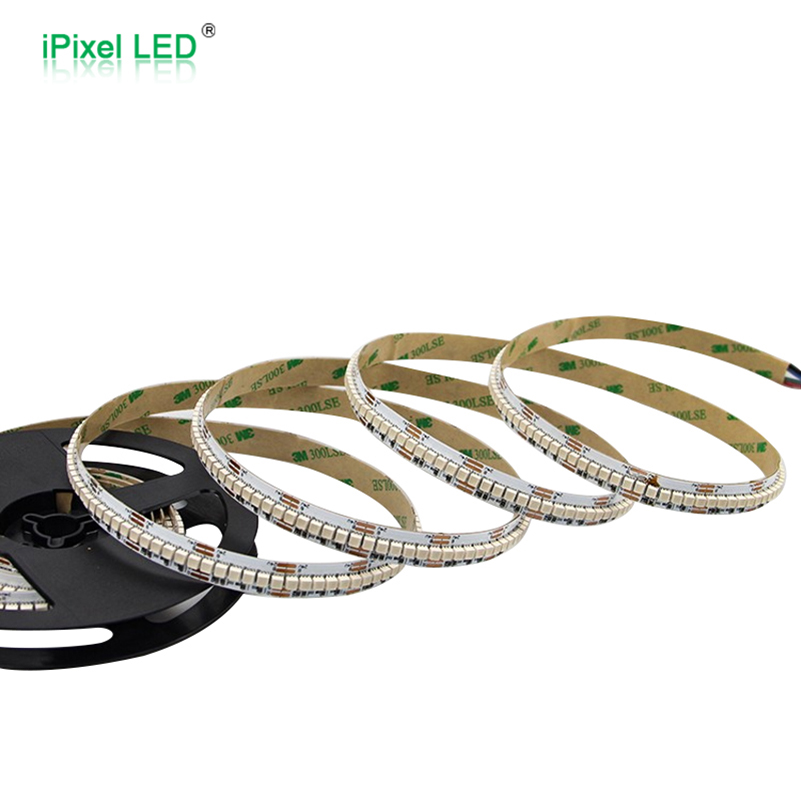

This flex led strip uses SMD3535 RGB LED chip, 240LEDs/m, with high brightness

The width of PCB is 12mm, and white PCB, 2+2 Ounce copper

DC24V, cuttable every 6LEDs/25mm

Standard size is 3M/roll, but custom length or terminal wires are accepted

Both ends of each led strip are welded with 4Pin power wire

The back of each strip with 3M adhesive, easy to tear and paste

The IP rate can be IP20, IP64, IP65 and IP67


Dimension (unit:mm)

RGB COB led strip 840LEDs/m

IP Rate


RGB COB led strip 840LEDs/m
