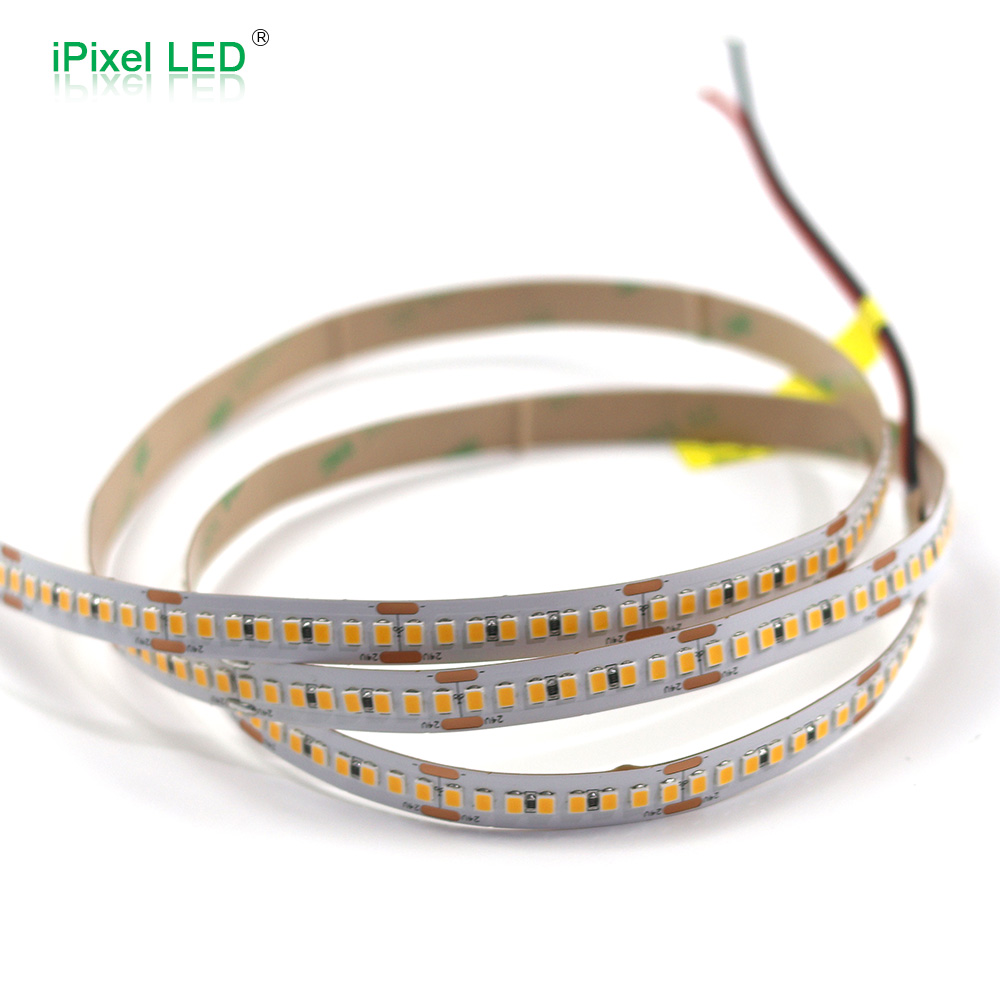

Description
Use 2835 high brightness led, high purity gold line, SANAN chip.
224LEDs/M, single row LED, high luminance efficiency and high Ra.
Input voltage DC24V. Luminance efficiency

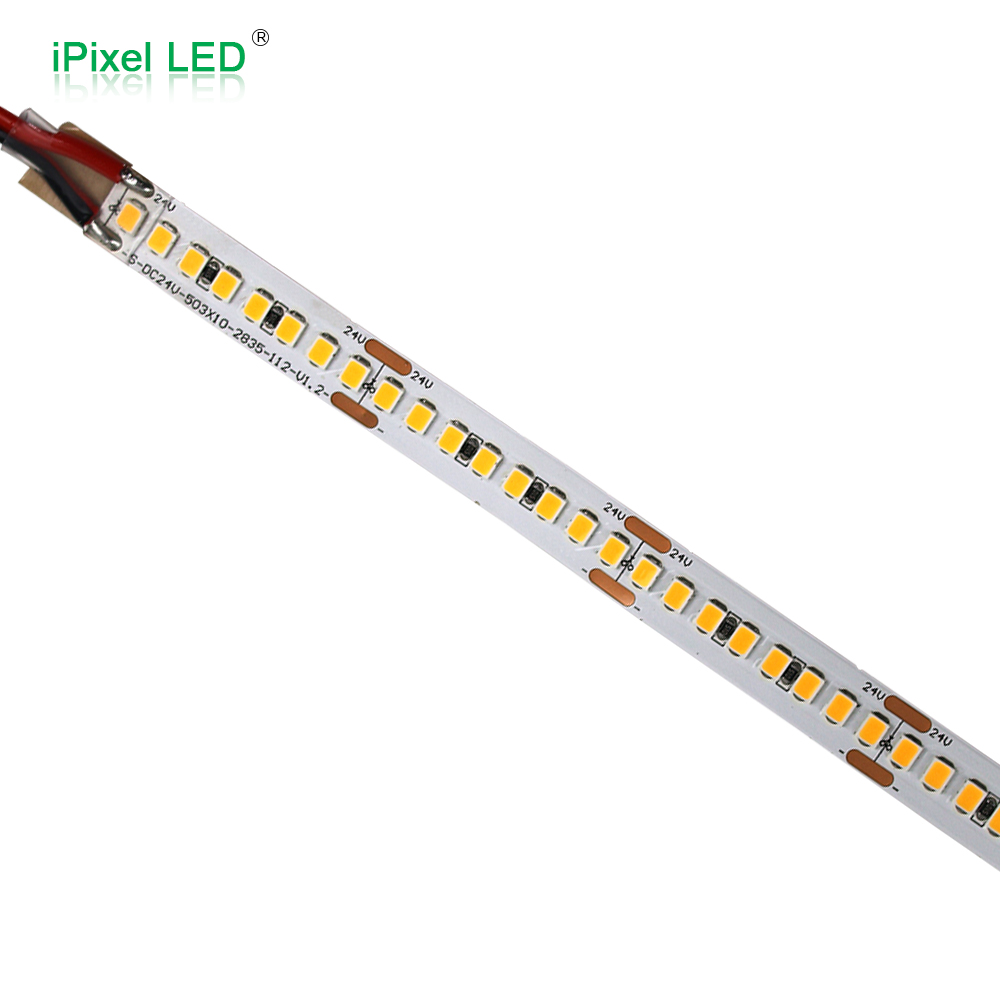

Flexible PCB, FPC color: white.
1+2 OZ copper thickness FPC, 10mm PCB width.
Standard length 5m per roll, the length also can be customized.
|
PN |
S010224BC1LZ (150lm) |
Luminance efficiency | ||
|
Voltage |
DC24V |
CCT |
Ra80 | Ra90 |
|
Power |
14W/m |
X Custom | ☆ Standard | |
|
LED Type |
SMD 2835x |
x2000K |
105lm/w |
95lm/w |
| LED Quantity |
224LEDs/m |
x2300K |
120lm/w |
105lm/w |
|
Dimension |
5000*10mm |
x2500K |
135lm/w |
120lm/w |
| Cutting Length |
35.71mm/8LEDs |
x2700K |
150lm/w |
135lm/w |
|
SDCM |
<5, 3 step 1 bin |
☆3000K |
150lm/w |
135lm/w |
|
ErP 2019 |
D/E |
x3500K |
150lm/w |
135lm/w |
|
Beam Angle |
120° |
☆4000K |
150lm/w |
135lm/w |
|
IP Rate |
IP20/IP64/IP65/IP67 |
x5000K |
150lm/w |
135lm/w |
| O.T | -25℃ ~ 60℃ |
☆6500K |
150lm/w |
135lm/w |
☆Indicates that this item needs customization
|
PN |
S010224BC1LZ(180lm) |
Luminance efficiency |
||
|
Voltage |
DC24V |
CCT |
Ra80 | Ra90 |
|
Power |
14W/m |
X Custom |
☆ Standard |
|
|
LED Type |
SMD 2835 |
x2000K |
130lm/w |
115lm/w |
| LED Quantity |
224LEDs/m |
x2300K |
145lm/w |
130lm/w |
|
Dimension |
5000*10mm |
x2500K |
160lm/w |
145lm/w |
| Cutting Length |
35.71mm/8LEDs |
x2700K |
180lm/w |
160lm/w |
|
SDCM |
<5, 3 step 1 bin |
☆3000K |
180lm/w |
160lm/w |
|
ErP 2019 |
C/D |
x3500K |
180lm/w |
160lm/w |
|
Beam Angle |
120° |
☆4000K |
180lm/w |
160lm/w |
|
IP Rate |
IP20/IP64/IP65/IP67 |
x5000K |
180lm/w |
160lm/w |
|
O.T |
-25℃ ~ 60℃ |
☆6500K |
180lm/w |
160lm/w |
Dimension (unit:mm)
