Description

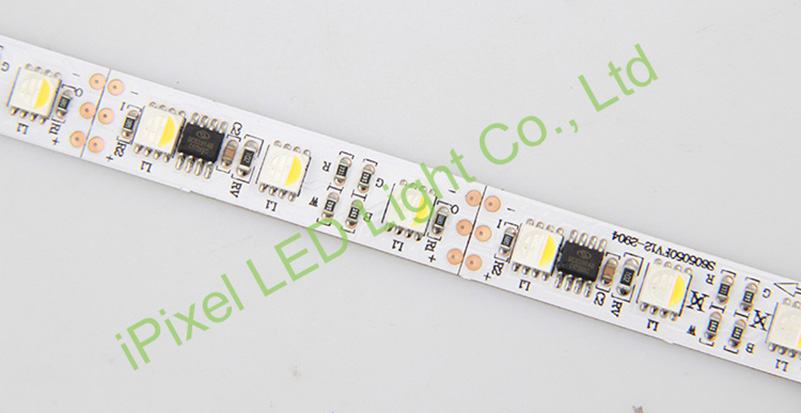

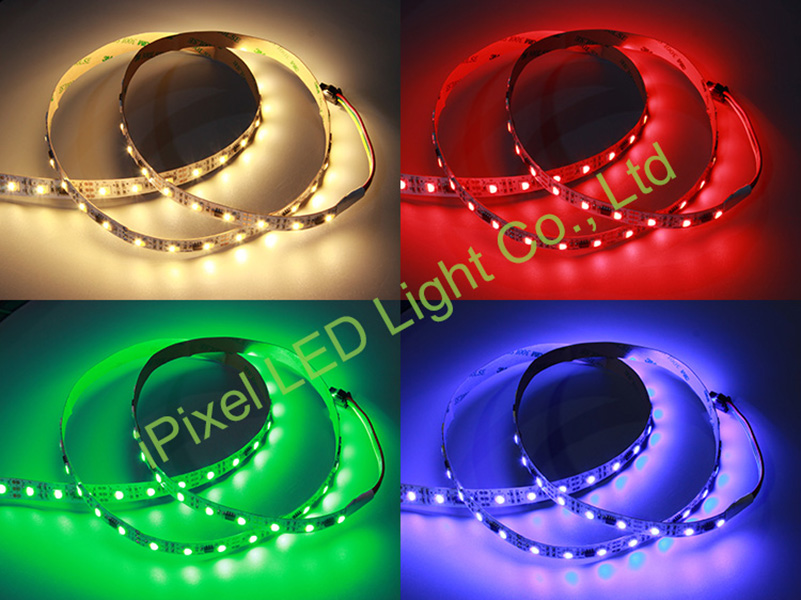

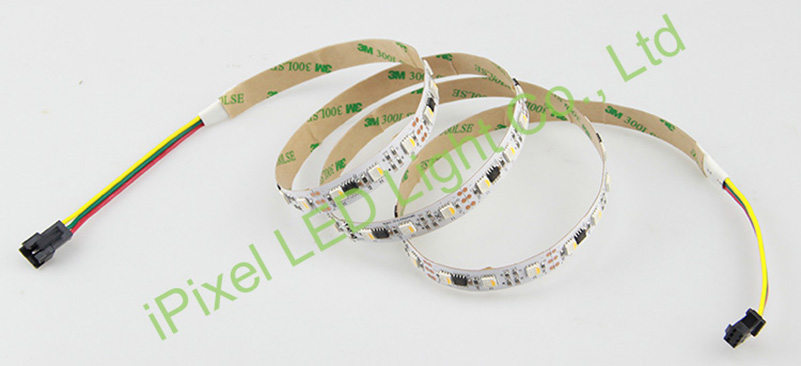

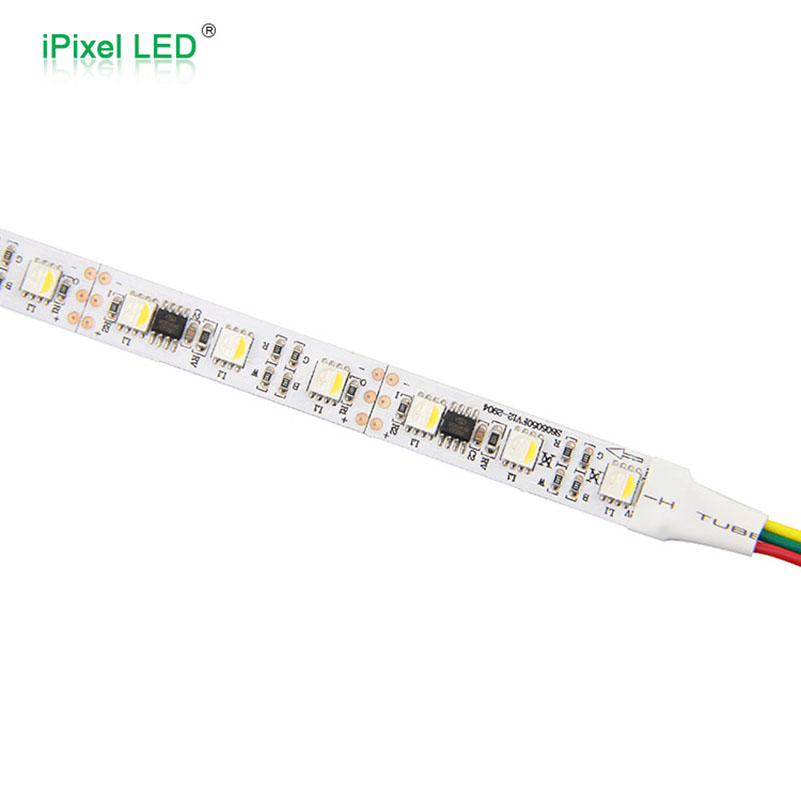

This led strip with 120pcs 2835 RGB LED chips
You can use PWM controller to control it
The input voltage is DC24V Flexible PCB, the FPCB color is white
The FPCB width is 6mm, 1 + 2 Oz copper
Standard 5M/roll, length can be customized
|
PN |
S006120BC3PZ |
|
Voltage |
DC24V |
|
LED Type |
SMD 2835 RGB |
| LED Quantity |
120LEDs/m |
| Color | RGB |
|
Dimension |
5000*6mm |
|
Cutting unit |
50mm |
|
Wavelength |
R:620-625 G:520-525 B:460-465nm |
|
Luminance/M |
Ｒ:100 Ｇ:240 Ｂ:36lm |
| Material | FPC |
|
Power |
15W/m |
|
Protocol |
PWM |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
