SMD 5050 RGB LED Strip 60LEDs/M DC12V/24V

Description

This is a PWM control RGB color LED strip without Pixel
60pcs SMD RGB 5050 LEDs per meter, 5meters/reel, 10mm PCB width
The cutting unit length is 50mm(12V), or 100mm(24V) per section
The PCB is made by 2 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12/24V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP68



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S010060CB3PZ
 S010060CC3PZ
    Voltage
    DC12V
 DC24V
    LED Type
    SMD 5050
 SMD 5050
    LED Quantity     60LEDs/m
 60LEDs/m
    Color     RGB  RGB
    Dimension
    5000*10mm
 5000*10mm
    Cutting unit
    50mm
 100mm
    PCB Color     White  White
    Power
    14.4W/m
 14.4W/m
    Protocol
    PWM  PWM
    O.T     -25 - 60℃  -25 - 60℃

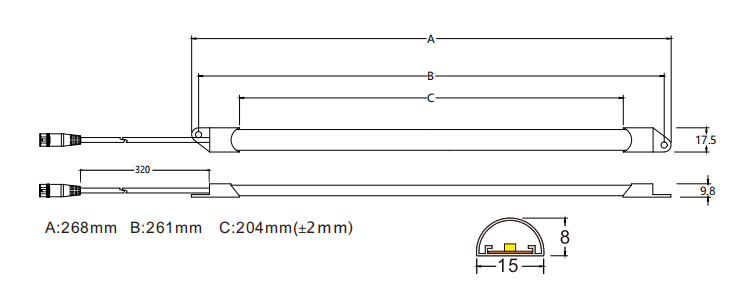

Dimension (unit:mm)

IP Rate
