RGB+Indigo (450nm ) LED flex 60LEDs/M DC24V

Description

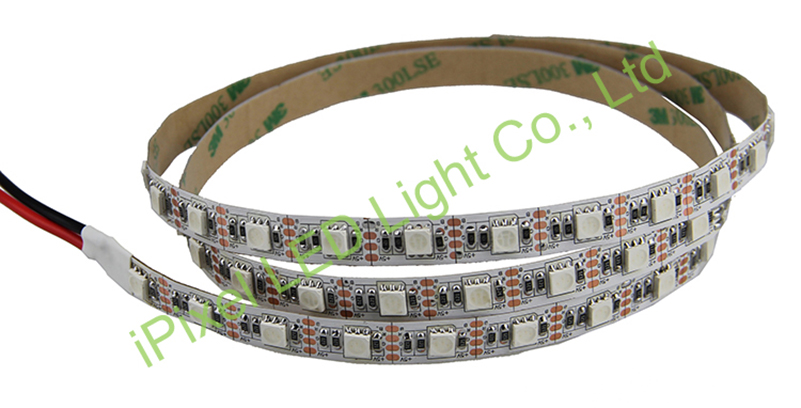

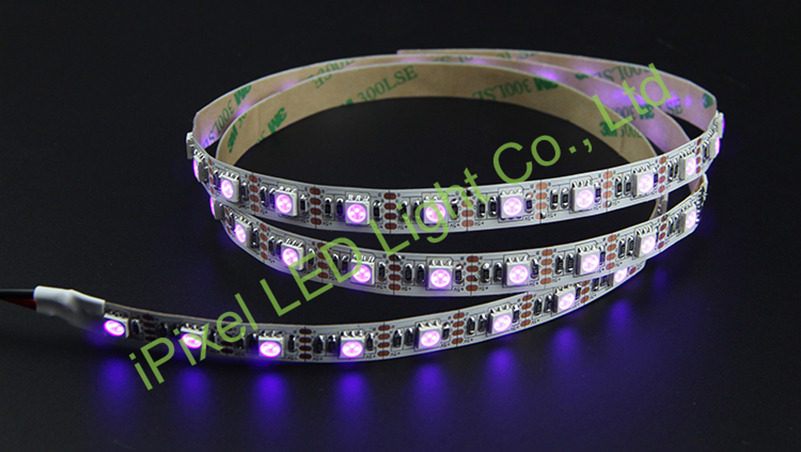

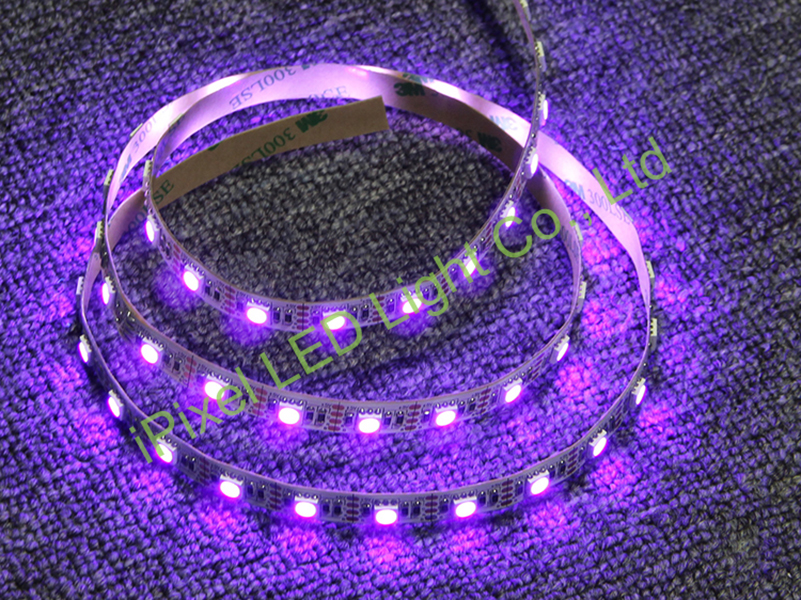

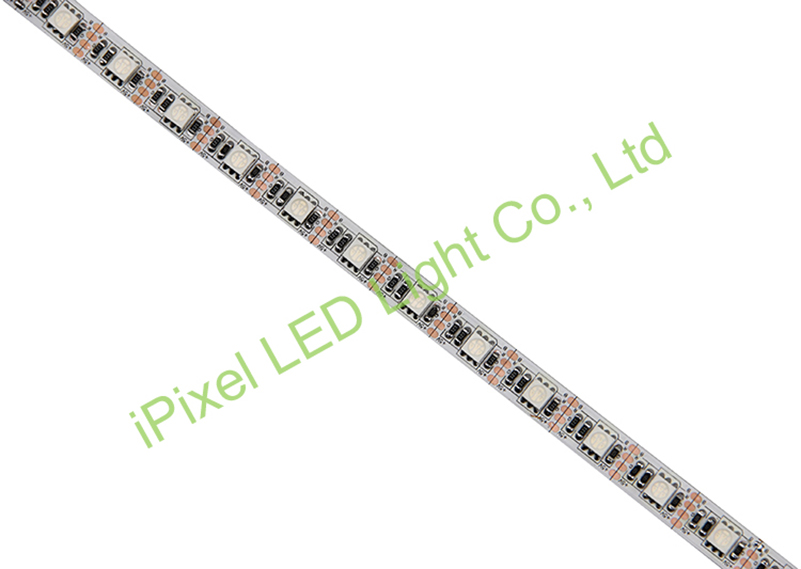

this is a special LED strip which could use for indoor backlighting
there are 30 pcs RGB and 30pcs indigo blue color LED chip each color controled seperately ,so there are 5 Pad
on the 10mm wide FPC?it comes 5meters in a reel with black color board and 3 M adhesive
like our other 24V strip ,each 100mm section can be cut down you can run by any PWM controller or
DMX512 controller , it only take 4 DMX address no Pixel control both end of strip attached a 120mm
5Pin bare wire



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S010060CC4PZ
    Voltage
    DC24V
    LED Type
    SMD 5050
    LED Quantity     30 RGB+30 Indigo LEDs/m
    Wavelength
    RGB+Indigo :450nm
    Dimension
    5000*10mm
    Cutting unit
    166.7mm
    PCB Color     White
    Power
    14W/m
    Luminous efficiency
    6.5lm/w
    O.T     -25℃ ~ 60℃



Dimension (unit:mm)

IP Rate
