Home > LED Flex > RGB > Small angle SMD5050 RGB 60LEDs/m led strip DC12V/DC24V

Small angle SMD5050 RGB 60LEDs/m led strip DC12V/DC24V

Description

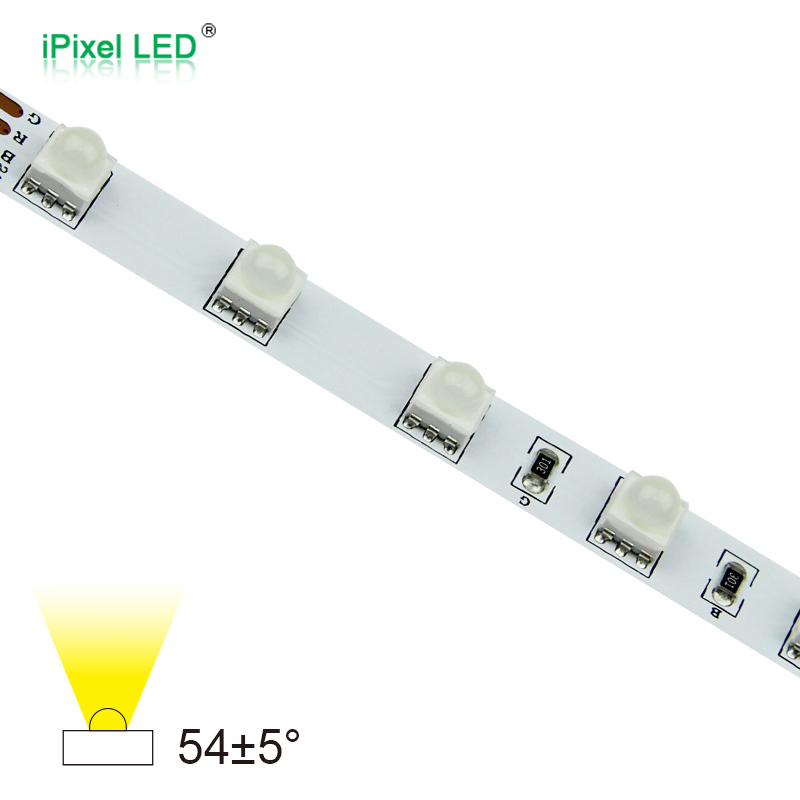

This led strip with 60pcs 5050 RGB Small angle LED chips
You can use PWM controller to control it
The input voltage is DC12V/24V Flexible PCB, the FPCB color is white
The FPCB width is 10mm, 1 + 2 Oz copper
Standard 5M/roll, length can be customized

Share to

Specification

Product Parameter

PN	S010060CB3PZ(T)	S010060CC3PZ(T)
Voltage	DC12V	DC24V
LED Type	SMD 5050 Small angle LED	SMD 5050 Small angle LED
LED Quantity	60 LEDs/m	60 LEDs/m
Cutting length	50mm	100mm
Beam Angle	45°	45°
Dimension	5000*10mm	5000*10mm
Control	PWM	PWM
Power	10W/m	10W/m
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃
