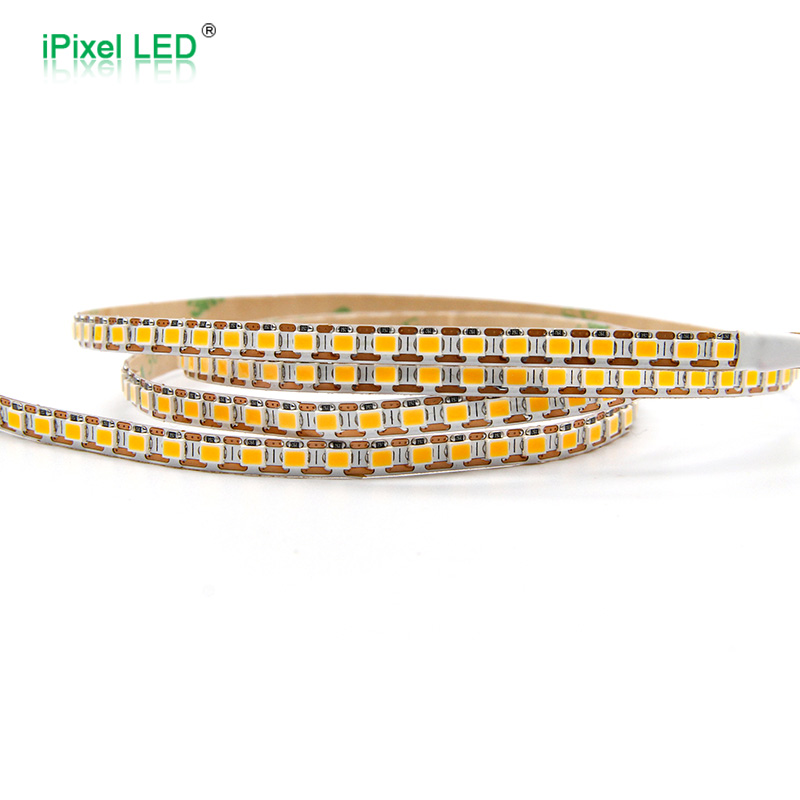

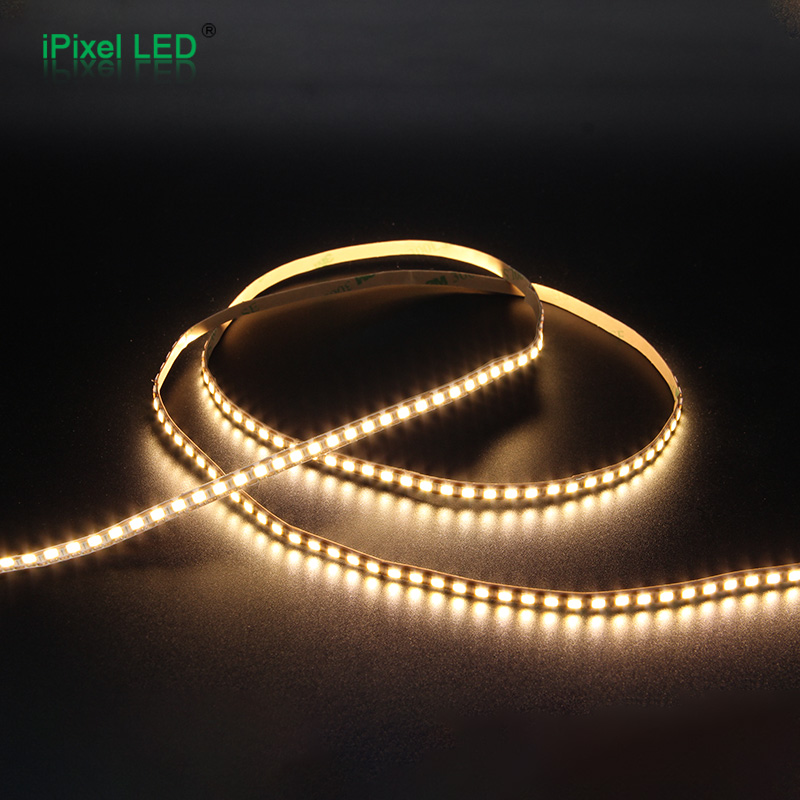

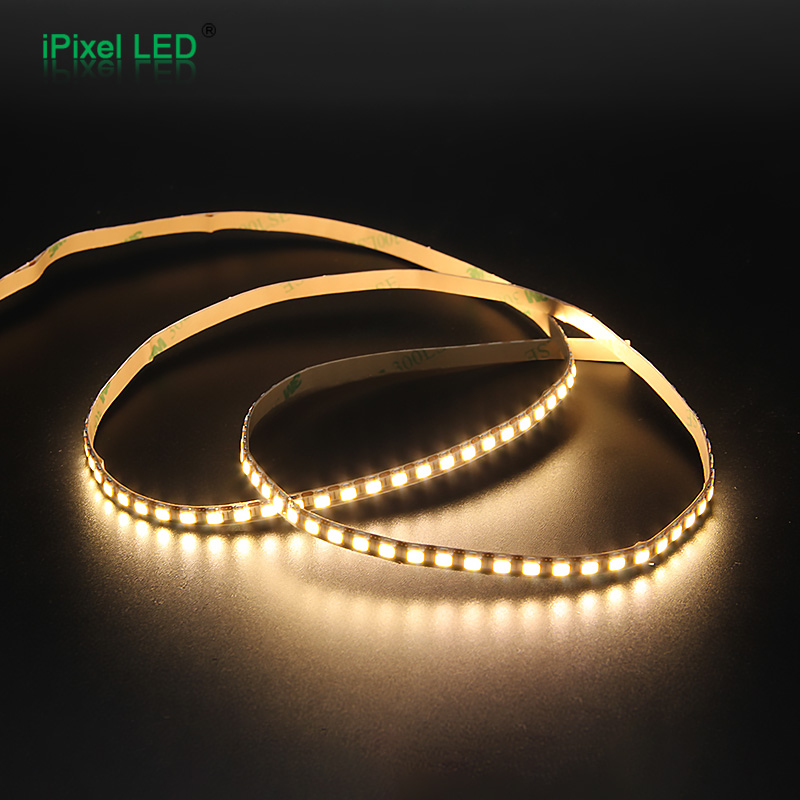

SMD2835 5mm Mini cut Single Color Led Strip 180LEDs/m DC24V

Description

-Mini Cutting LED Strip, can be cut into any specific size

 -SMD2835 brightness led, High-density 180LEDs/m, 1LED/cut

-Slim Design: The strip is extremely thin and sleek, making it ideal for applications where space is limited.

- Standard length 5m per roll. The length also can be customized.



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S005180BC1LZ
    Voltage
    DC24V
    Power
    9W/m
    LED Type
    SMD 2835
    LED Quantity     180LEDs/m
    Color      3000K/4000K/6500K
    Lumen
    635Lm/M

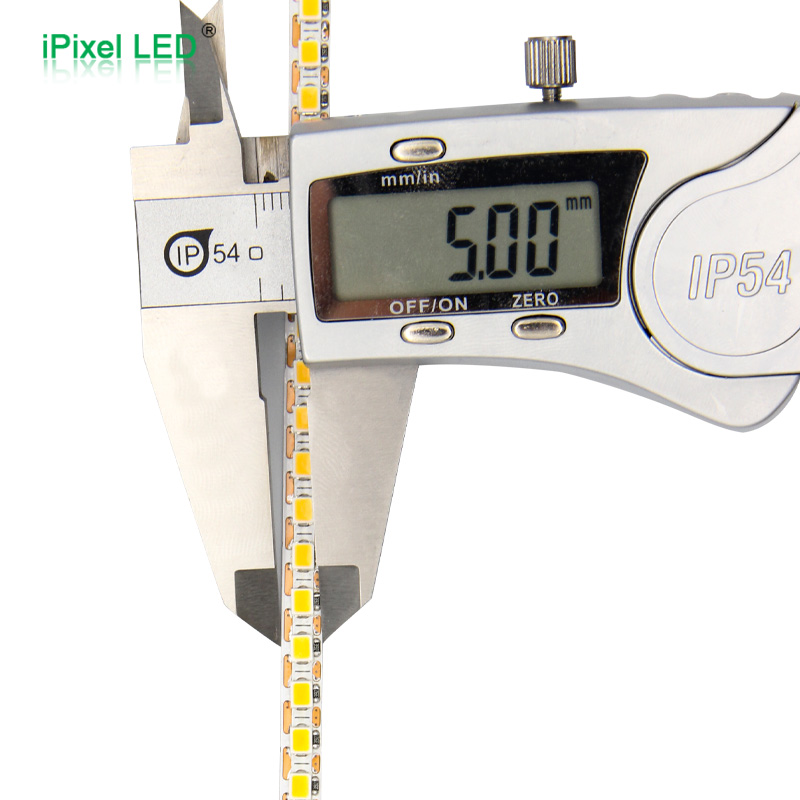

    Dimension
    5000*5mm
    Cutting unit
    5.5mm/1LED
    Materiar     FPC
    ErP 2019
    F / G
    IP Rate
    IP20/IP64/IP65/IP67
    O.T     -25℃ ~ 60℃



Dimension (unit:mm)

IP Rate
