Home > LED Neon > Top View >   16x16mm IC2904 RGBW top view LED Neon strip DC12V/24V

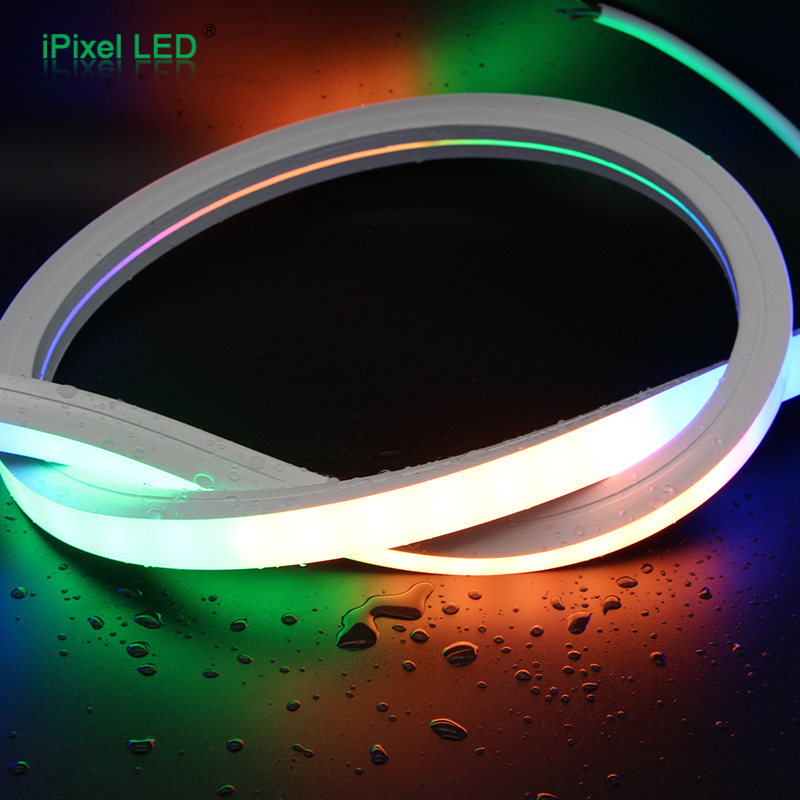

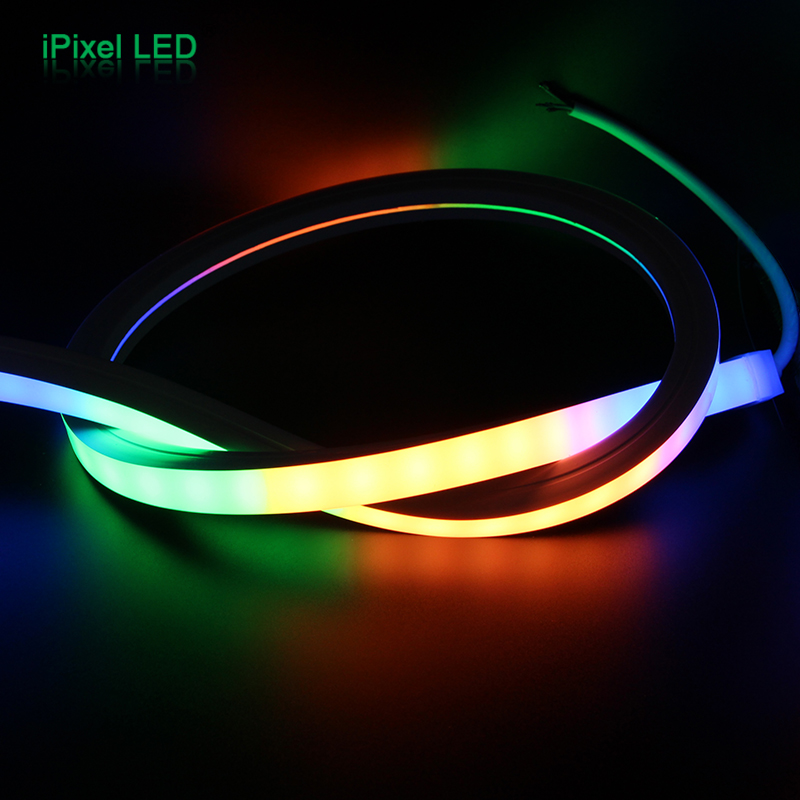

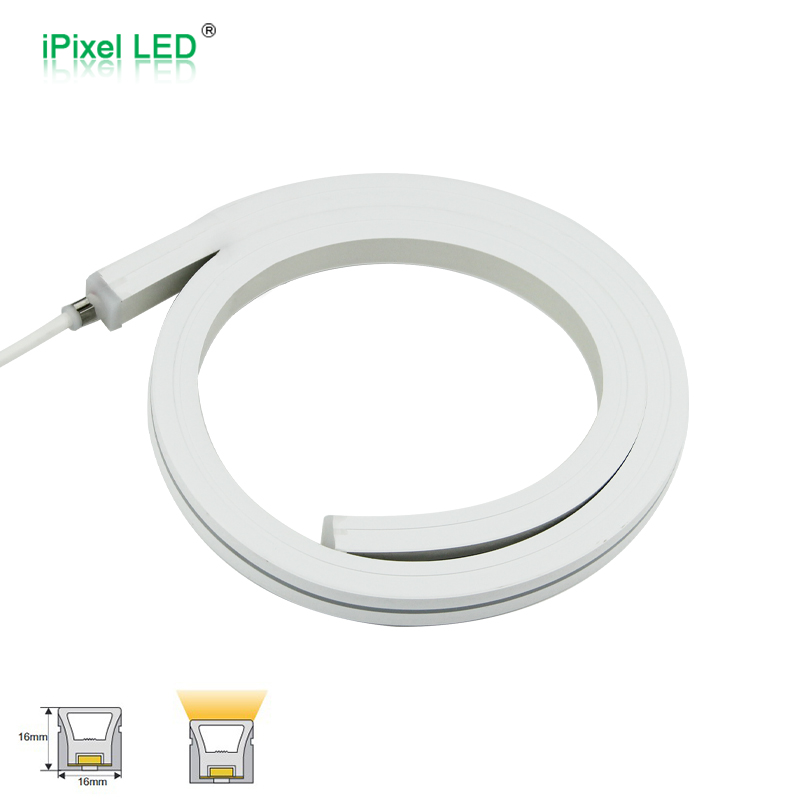

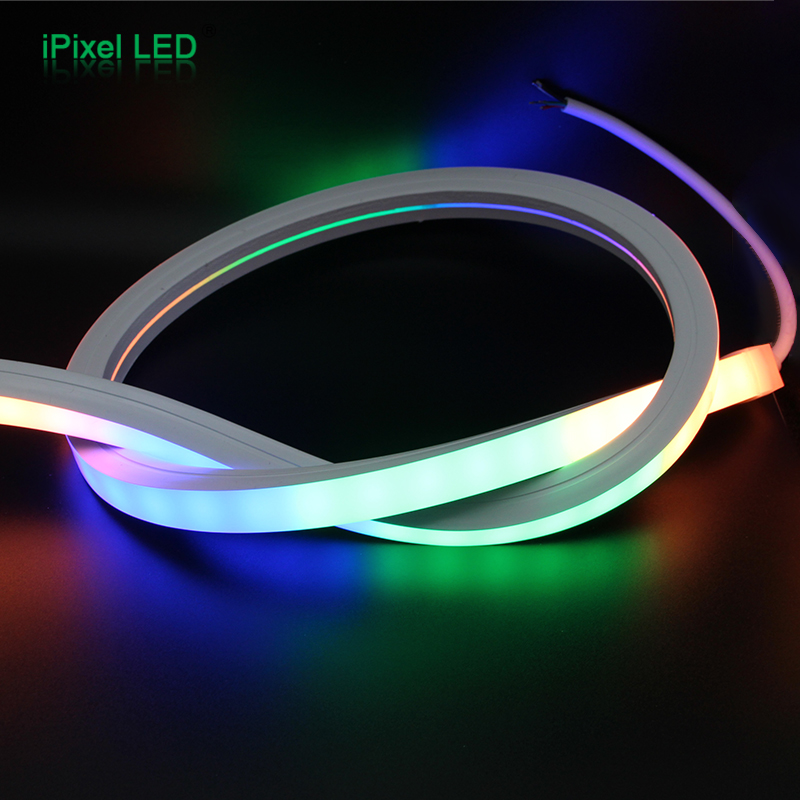

16x16mm IC2904 RGBW top view LED Neon strip DC12V/24V

Description

·16X16 Single sided neon flex led strip, you can bending up and down;

· Light source: highlights led chip;

· Control method: Adopting the SPI signal, it can achieve animation effects such as flowing water,

horse race, jumping, gradients;

· Optical design: Unique optical light structure design, uniform light on the surface, no shadow,

The light -free spots, the light is very soft;

· Exterior design: simple and fashionable,

· Product certification: UL, CE, RoHS;
· Environmental characteristics: salt tolerance, corrosion resistance, flame retardant, UV resistance;

· 2 years of quality insurance, working life ≥36000 hours



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    N016084CB4ST(N1616)
 N016084CC4ST(N1616)
    Voltage
    DC12V
 DC24V
    LED Qty/M
    SMD5050-84LEDs/m
 SMD5050-84LEDs/m
    Pixel/M
    28Pixels-IC2904
 12Pixels-IC2904
    Cutting Length
    35.7mm
 83.33mm
    Power
    27W
 23W
    LED Qty/M
    SMD5050-84LEDs/m
 SMD5050-84LEDs/m
    CCT
    RGB+W:3000K/4000K/6500K
 RGB+W:3000K/4000K/6500K
    Brightness
    CCT
 CCT
    Dimension
    5000*16*16mm
 5000*16*16mm
    Material
    Silicon
 Silicon
    O.T     -25℃ ~ 60℃  -25℃ ~ 60℃
