Description

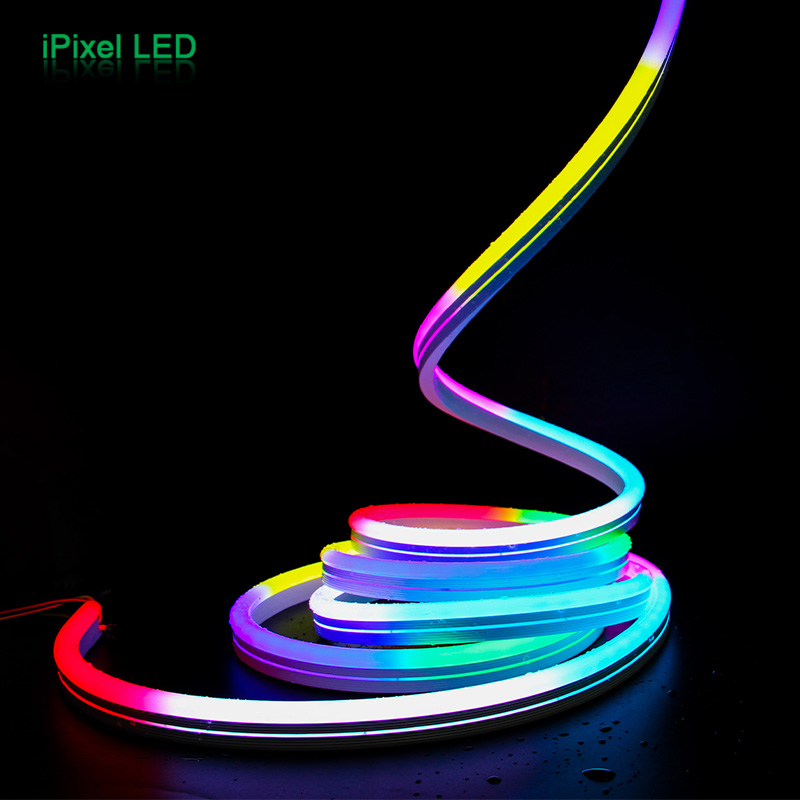

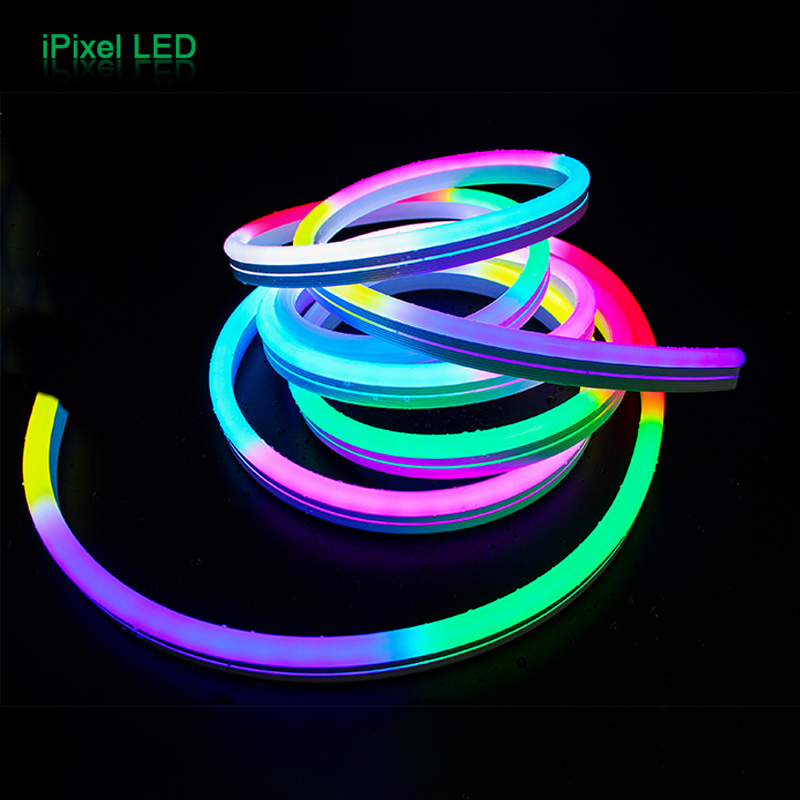

This digital Neon LED is made of Silicon material
Fire resistance, Anti - UV, Anti - Corrosion and deformation resistance
Diffused color without any light spots, Emitting angle 180 Degrees
Standard 5 meters/ reel, but can be customized within 50meters
The cutting unit length is 50mm/12V, 100mm/24V per section
JST SM connector on input and output side, SPI Control
20Pixels/Meter DC12V, 10Pixels/Meter DC24V
Waterproof IP65 Rated for outdoor installation
PN |
N012060CB3SF |
N012060CC3SF |
Voltage |
DC12V |
DC24V |
LED Type |
SMD5050 |
SMD5050 |
CCT |
RGB |
RGB |
Dimension |
5000*12*22mm |
5000*12*22mm |
Material |
Silicon |
Silicon |
Power |
12 W/m |
12W/m |
Pixel/M |
20Pixels-SPI |
10Pixels-SPI |
O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm)
