WS2815 RGB Addressable LED strip 30/60/144LEDs/M DC12V

Description

This is a new chip again from worldsemi family, based on WS2812B and WS2813.

To solve the chip breakdown and Strip's Voltagedrop ,now we welcome WS2815.

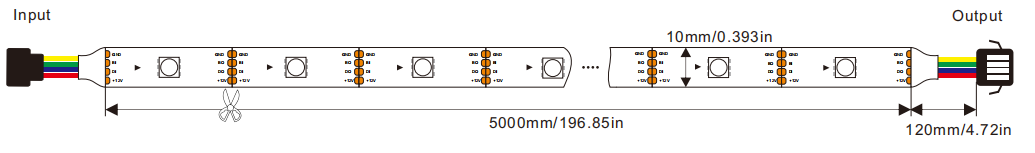

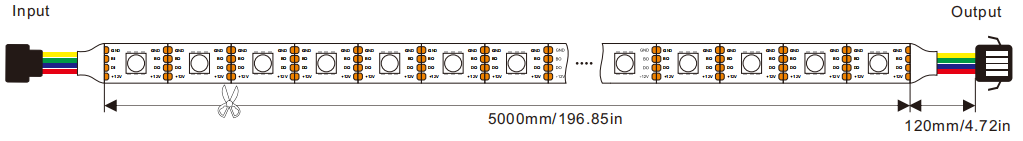

The Flex is 30/60/144 Pixel/ LED per meter ,and 5 m in a roll we provide black and  white color board.

same as our other addressable tapes, it's cut-able per unit LED with a large soldering Pad which makes

easy to re-solder again.

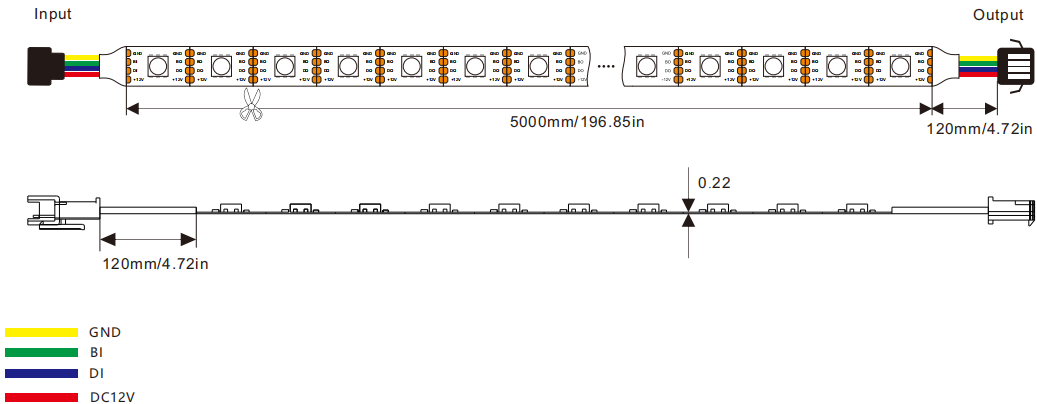

the PCB printed +12V DI ,BI, GND , both DI and BI means signal but it's only required to link the DI cable to

your controller.

this PCB made by 3Ounce copper for more reliable application.

3 M tape attached on backside of strip.

again we suggested you power it every 5 meters even it's 12V addressable.
