Home > Digital Strip > SPI > Addressable S Shape zigzag LED strip 60LEDs/M DC5V

Addressable S Shape zigzag LED strip 60LEDs/M DC5V

Description

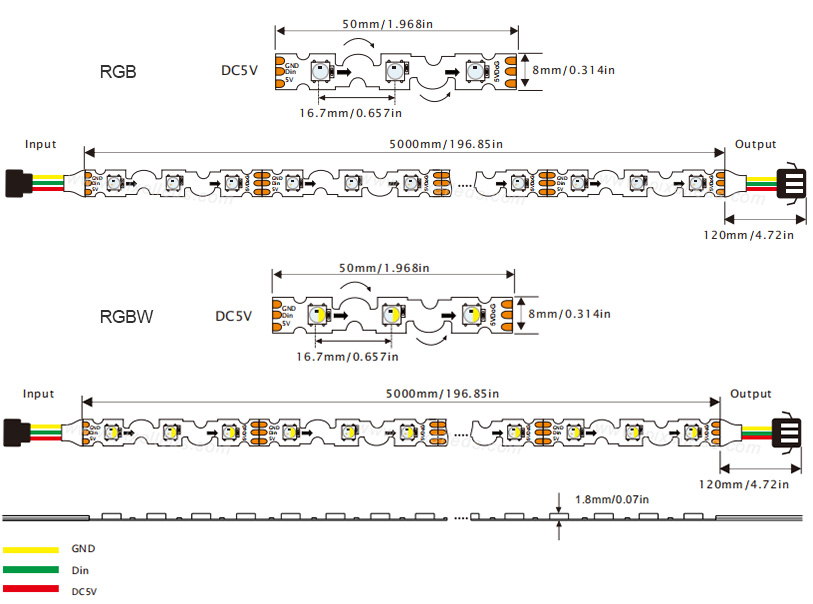

S shape(zigzag) addressable flex led strip
SMD5050 RGB and RGBW types are available
60LEDs/m, 5m in a reel, and 3LEDs per section cut-able every 3 leds
The IC is SK6812, with addressable individually control
The biggest advantage is the S shape, which can be bend at any Angle
Only available in IP20 non-waterproof version

Share to

Specification

Product Parameter

PN	S008060CA3SA1	S008060CA4SA1
Voltage	DC5V	DC5V
Power	12W/m	13W/m
LED Type	SMD5050 RGB	SMD 5050 RGBW
LED Quantity	60LEDs/m	60LEDs/m
Cutting length	50mm/3LED	50mm/3LED
Dimension	5000*8mm	5000*8mm
Protocol	SPI - SK6812	SPI - SK6812
Pixel/M	60	60
Materiral	FPC	FPC
Luminance/m	R:60Lm G:180Lm B:40Lm	R:35Lm G:100Lm B:30Lm W:170Lm
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃
