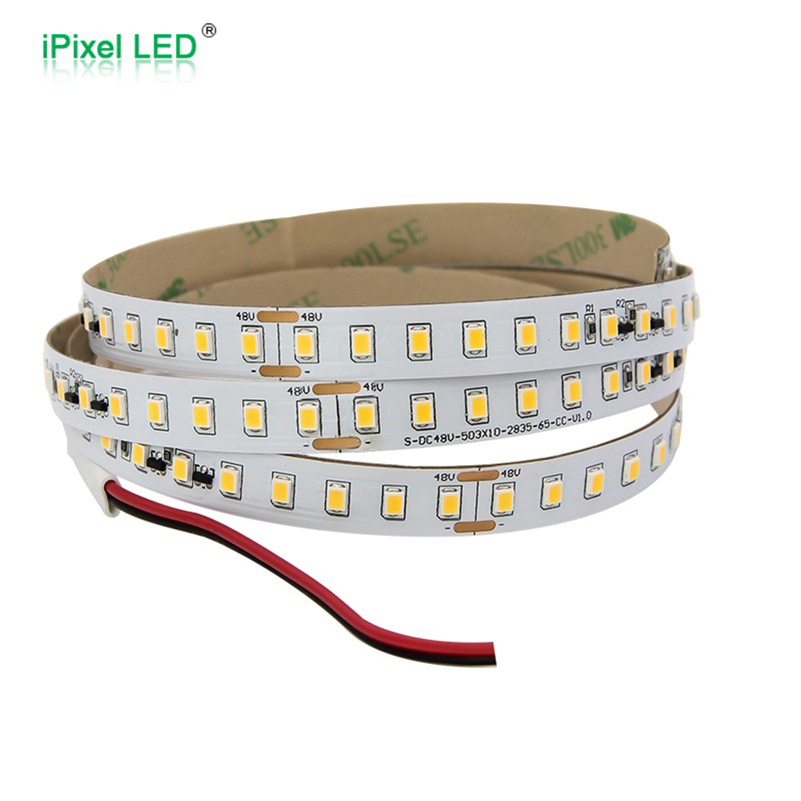

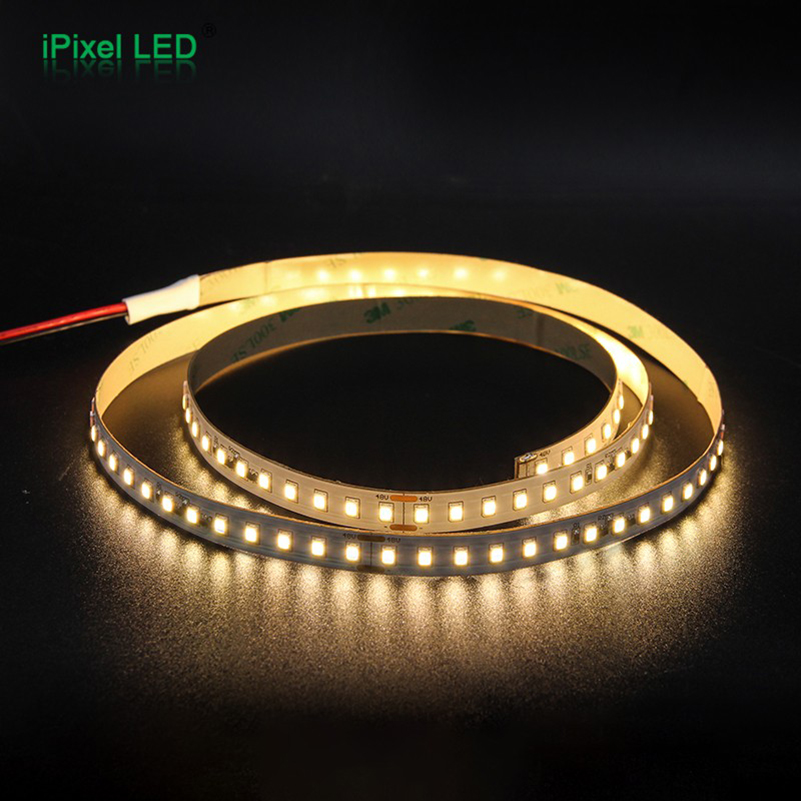

High Efficiency 2835 single color LED strip 130LEDs/M DC48V

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back ground
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

PN	S010130BJ1HZ	Luminance efficiency
Voltage	DC48V	CCT	Ra80	Ra90
LED Type	SMD 2835	☆2000K	☆80lm/w	☆72lm/w
LED Quantity	130 leds/m	☆2300K	☆90lm/w	☆80lm/w
Dimension	5000*10 MM	☆2500K	☆100lm/w	☆90lm/w
Cutting Length	100mm / 13LEDs	☆2700K	☆110lm/w	☆100lm/w
SDCM	<5, 3 step 1 bin	3000K	110lm/w	100lm/w
Power	7 W/M	☆3500K	☆110lm/w	☆100lm/w
Beam Angle	120°	4000K	110lm/w	100lm/w
IP Rate	IP20/IP65	☆5000K	☆110lm/w	☆100lm/w
O.T	-25℃ ~ 60℃	6000K	110lm/w	100lm/w

☆Indicates that this item needs customization

Description

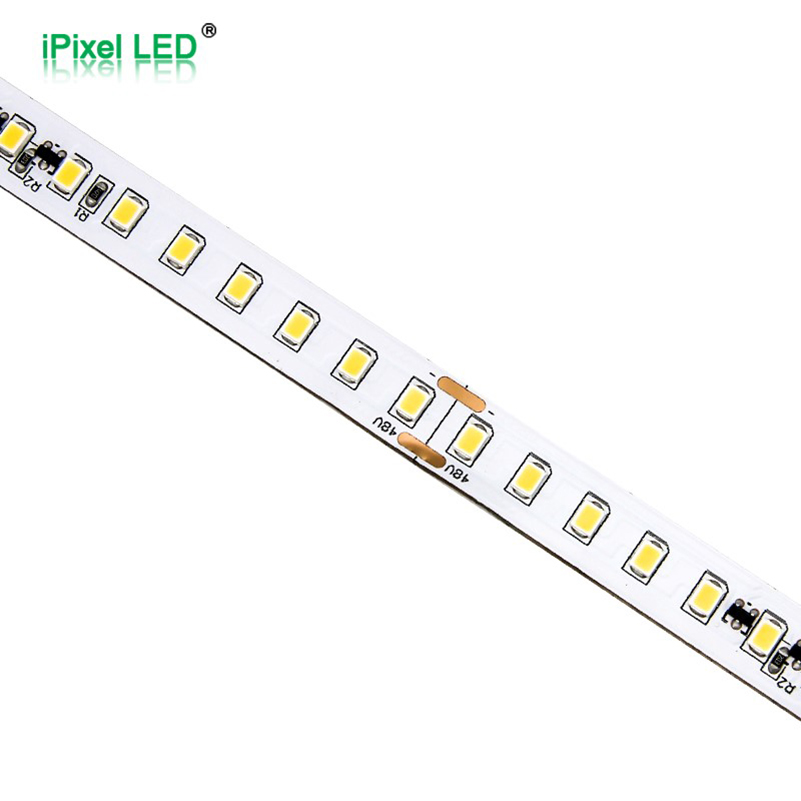

Use 2835 high brightness led, high purity gold line, SANAN chip.
130LEDs/M, single row LED, high luminance efficiency and high Ra.
Input voltage DC48V. Luminance efficiency
Flexible PCB, FPC color: white.
1+2 OZ copper thickness FPC, 10mm PCB width.
Standard length 5m per roll, the length also can be customized.

Dimension (unit:mm)
