Download Software

2019 LedEdit-K_v4.3_setup.rar

Support  chips(PC Software Select K-8000-RGB):
1: UCS1903 ,SK6812(Support up to 1024*8=8192  pixels)
2 :SM16716,16726 (Support up to 2 1024*8=8192  pixels )
3: LPD6803 (Support up to 2 1024*8=8192  pixels )
4: WS2801(Support up to 2 1024*8=8192  pixels)
5 TM1914 (Support up to 2 1024*8=8192  pixels)
7:DMX (Support up to 6 512*8=4096 , pixels, suggest to support  ≤0 320*8=2560 pixels)

Share to

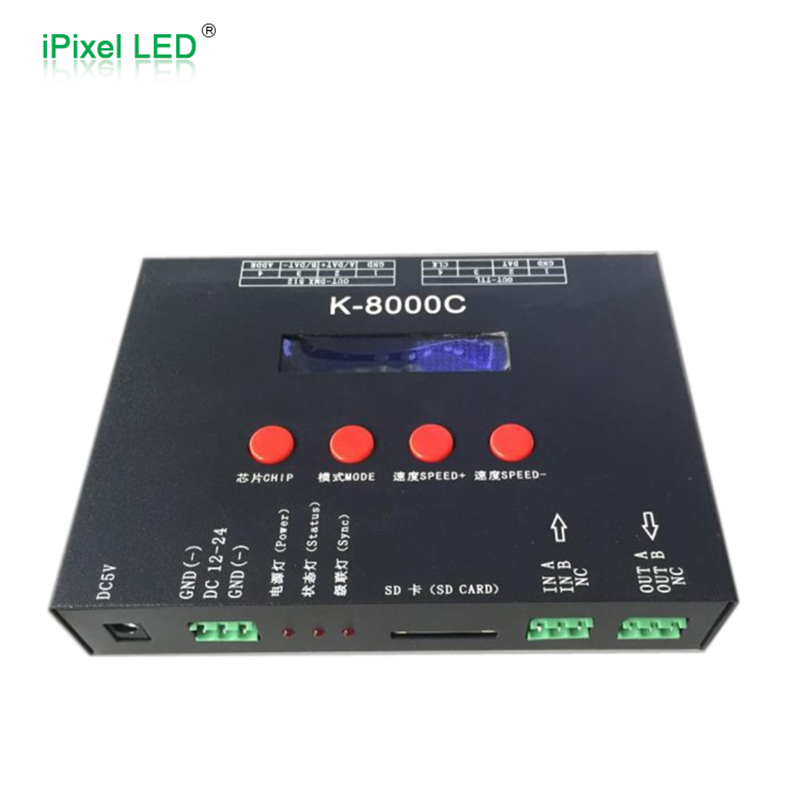

K-8000C system features:

1、32 to 65536 degree Gray control, Gamma correction procession handle.
2、Support various point, line light source, and all kinds of rules and specific shaped handle.
3、The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
4、The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7、For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8、Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9、Enhanced 485 TTL and 485 differential (DMX) signal output.
10、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

1.If support RGBW four  channels’ lights should select  K-8000-RGBW
2.If support single  channel t light should choose  K-8000-W, at this time, one channel means  one pixe, the software effect make as white lighting.


Button  meaning:



 CHIP  Switch chipmodel

      Press CHIP and then MODE button, can enter write code mode,61 means UCS512-A/B coding;

      62 means WS2821 coding; 63 means SM512 coding, 64 means UCS512-C coding

 MODE  Switch files
 SPEED+  Speed up        Press SPEED+ and SPEED- the same time, would enter effect files looping mode.
 SPEED-  Speed down

Specific  parameter:


Physical  parameter

 Memory  card type  SD card Working temperature -20℃—85℃
 SD card capacity 128MB—32GB Working power DC 5V or DC12-24V input
 SD card format  FAT or FAT32 Power consumption 5W
 Storage file   *.led Weight 0.8KG
 SD CARD  SD card slot Size  L 180* W 120* H 30mm

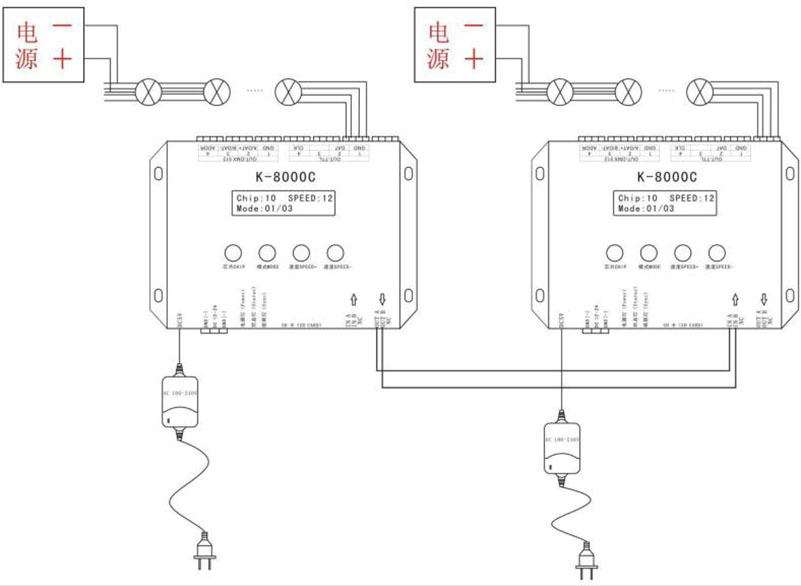

Conventional IC lamps wiring
