4mm Width Tiny Addressable LED Strip

Application:

. Hotels,restaurants,nights clubs,

. Shopping malls,various shops,

. Coffee/wine bars, furniture light

. Cinemas,beauty centers,
. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    S004150UA3SDO
    Voltage
    DC5V
    LED Type
    SMD 1515 RGB
    LED Quantity     75LEDs/pcs(0.5m)
    Protocol
    SPI
    Dimension
    500*4 MM
    Emitting Color
    Full color
    PCB Color     Black
    Power
    6.6W/pcs
    O.T     -30℃ ~ 45℃

Description

This is a Tiny Flexible LED strip ,only 4mm width ,RGB addressable?Micro LED chip 1.5*1.5mm only ,

each RGB LED built a mini driver inside?SPI Protocol ,256 level gray scale adjustable, signal in series

transmission each unit LED
can be cut down but not able to solder again in 500mm section 5VCC Pad on bottom side, Data&GND

on front side,26AWG silicone wire, The LED strip can be link to?it can be link to 1.5m long if powering

from one side, 3M tape attached, non-waterproof IP20

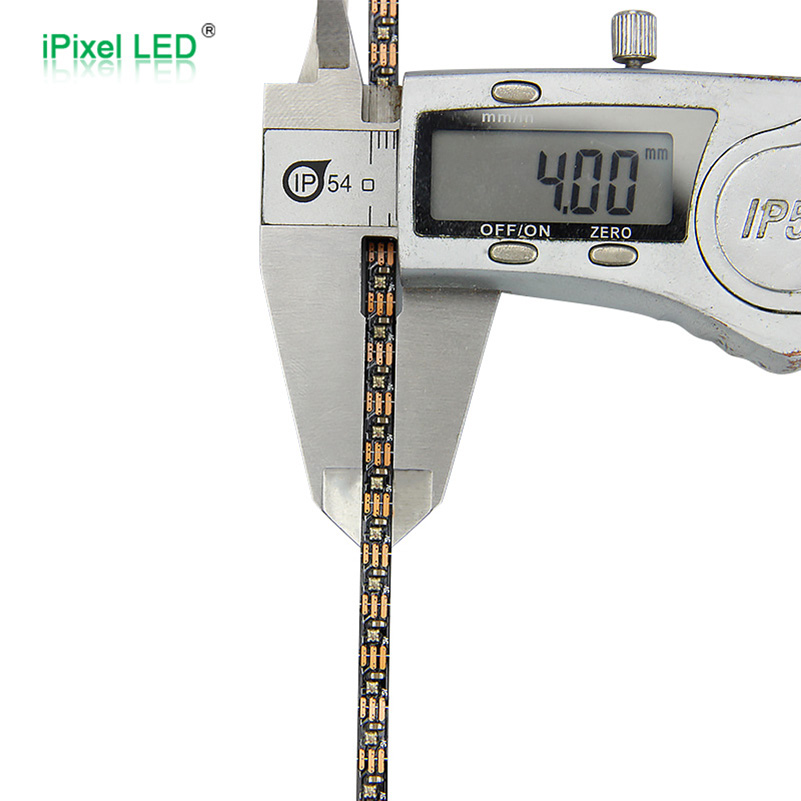

Dimension (unit:mm)

4mm Width Tiny Addressable LED Strip

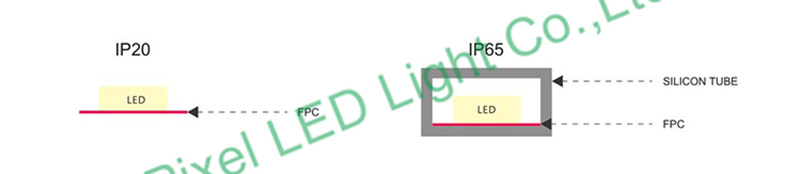

IP Rate

WS2813 RGB Addressable LED strip 5V
