Double row 120leds/m SK6812 RGB side emitting addressable LED strip

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com



Share to

Specification

Product Parameter

    PN
    S010120IA3SA1
    Voltage
    DC5V
    LED Type
    SMD 4020 RGB
    LED Quantity     120 leds/m
    Dimension
    5000*10 MM
    Protocol
    SK6812
    PCB Color
    White/Black
    Power
    23 W/M
    Lumens
    480LM/M
    O.T     -30℃ ~ 45℃

Description

Side emitting addressable LED Strip with SMD4020 RGB LED chips.
This new SK6812 side emitting addressable LED strip comes out under the demand of edge lighting.
With limited size for installation of the strip 60Pixels/m. Every 16.67mm can be cut.
PCB Color: White only. DC5V voltage. SPI signal protocol. 5 Meters per reel. Customized sizes are also available.

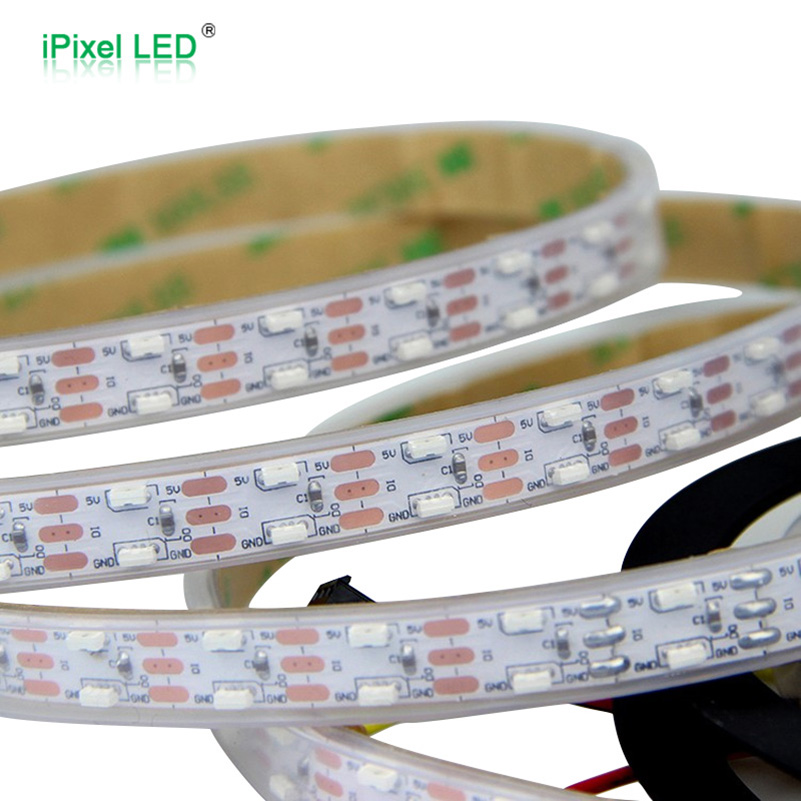

3Pin JST SM connector. IP65 waterproof with silicon tube housing.

The PCB is 1+2 Ounce copper, 10mm width.

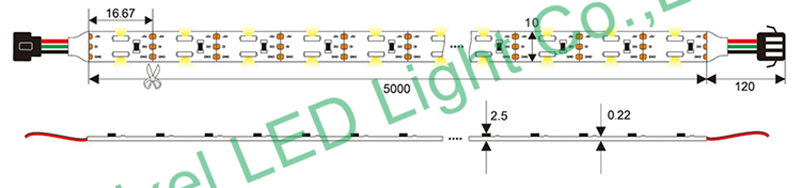

Dimension (unit:mm)

Double row 120leds/m SK6812 RGB side emitting addressable LED strip

IP Rate

Double row 120leds/m SK6812 RGB side emitting addressable LED strip
