Description

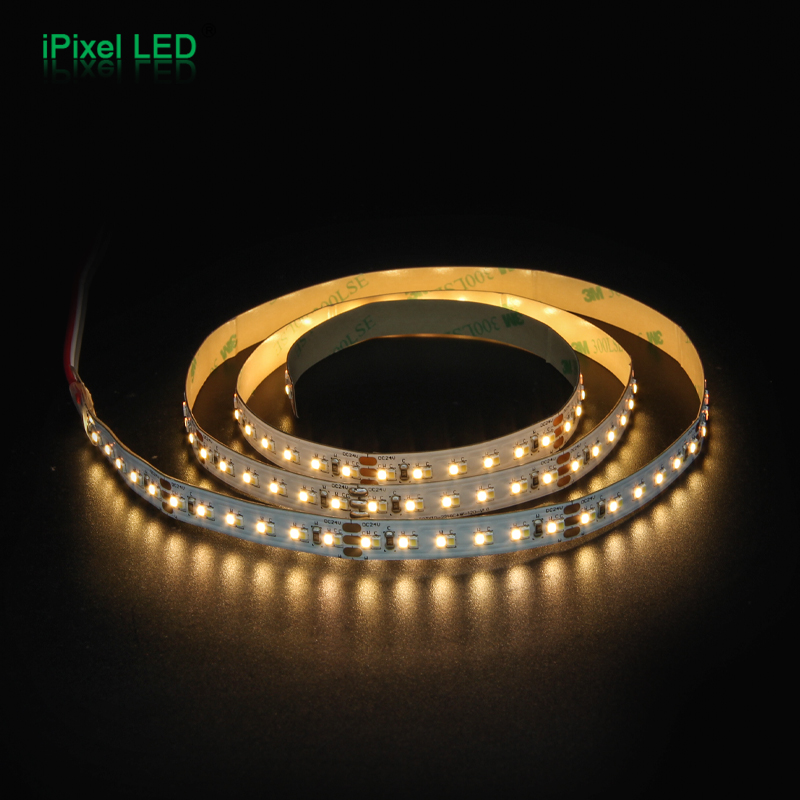

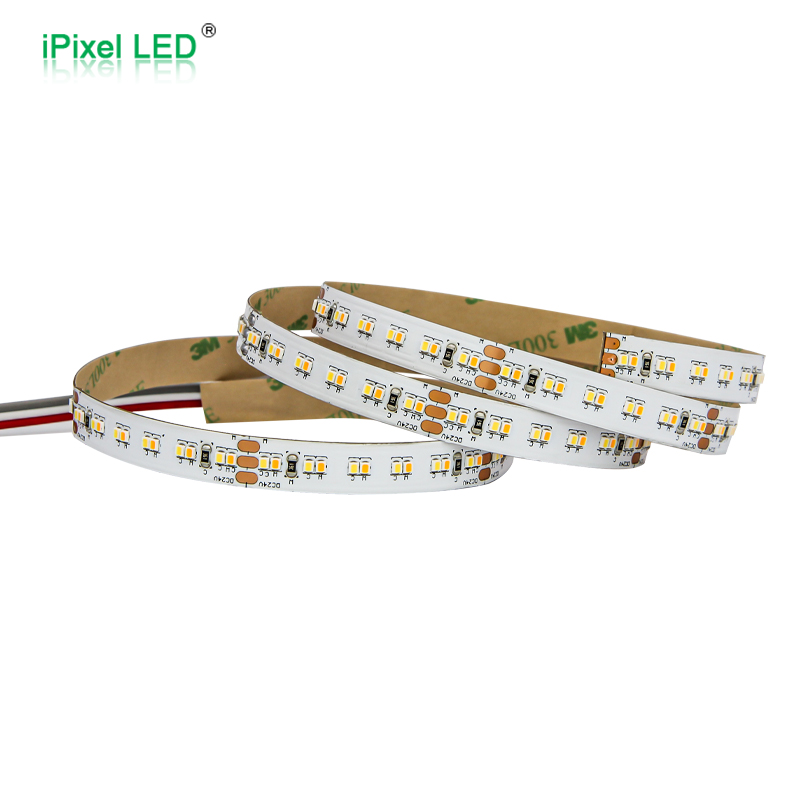

High density CCT color Adjustable LED strip has 240pcs 2216 LEDs
With 10mm Width, 2 Ounce copper
Cut-able every 12LEDs & 50mm
All soldering Pads are very large, allowing you to easily cut and reconnect
DC24V constant voltage operation
Both ends have 3pin bare wires for powering
3M tape attached on backside of FPC
|
PN |
S010240XC2PZ |
|
Voltage |
DC24V |
|
LED Type |
SMD 2216 |
| LED Quantity |
240LEDs/m |
|
Color |
2700K+6500K |
|
Dimension |
5000*10mm |
| Cutting Length |
50mm |
|
Lumens/m |
CW: 832 WW:782lm |
| Material | FPC |
|
Power |
20W/m |
|
Control |
PWM |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
